Powermatic

8" Jointer - 2 HP 1 Ph 230V - Helical Cutterhead - 60HH

Item #843948 Model PM9-1610086K
Regular price $3,499.99
Sale price $3,499.99 Regular price $3,499.99

This item has an additional shipping charge

If you have a need for accuracy, this Powermatic 60HH 8" Jointer with its Helical Cutterhead will meet those needs while providing unique, user-friend. . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

  • Magnetic Jointer Knife Setting Jig - Polycarbonate Body

    Regular price $33.99
    Sale price $33.99 Regular price $33.99
    Magnetic Jointer Knife Setting Jig - Polycarbonate Body alt 0

Details

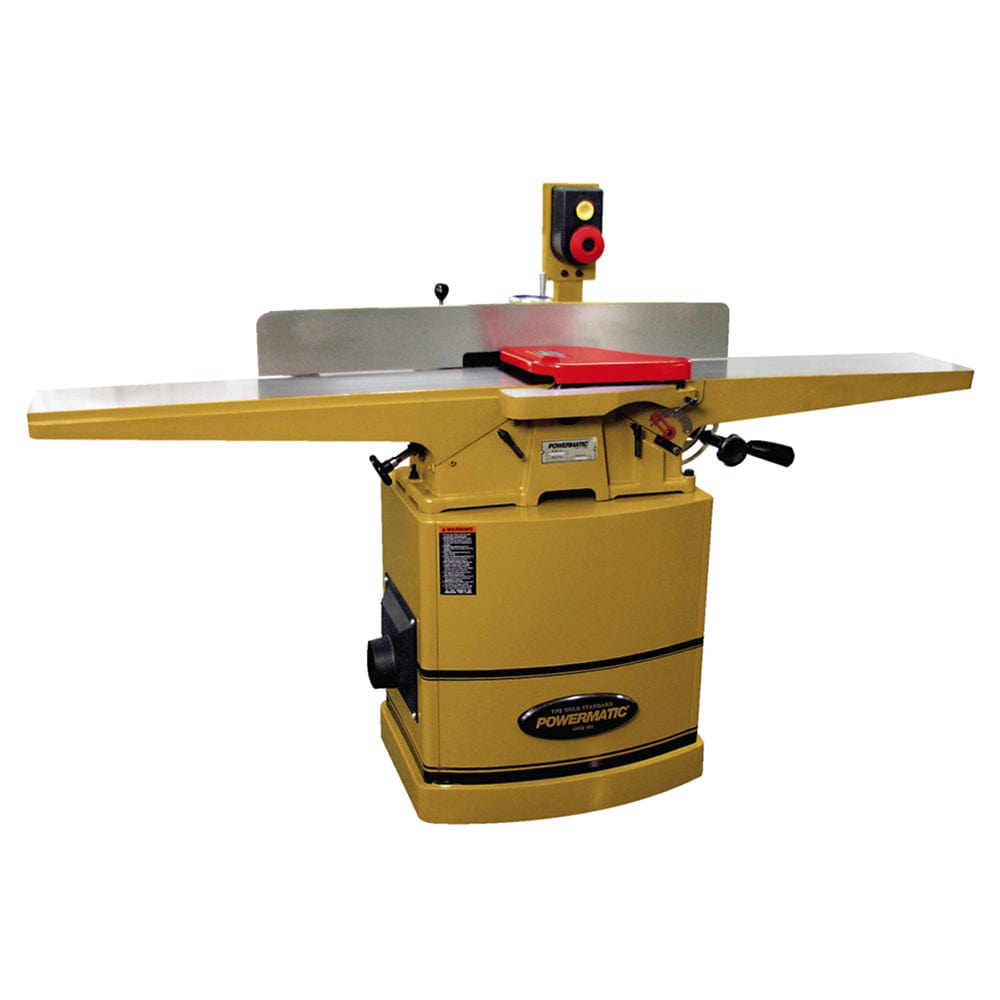

If you have a need for accuracy, this Powermatic 60HH 8" Jointer with its Helical Cutterhead will meet those needs while providing unique, user-friendly functions.
The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73" long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The operating switch is mounted high so you can reach it easily, and the push blocks have a magnetic base so they can be stored on any metallic surface for instant access.
Features

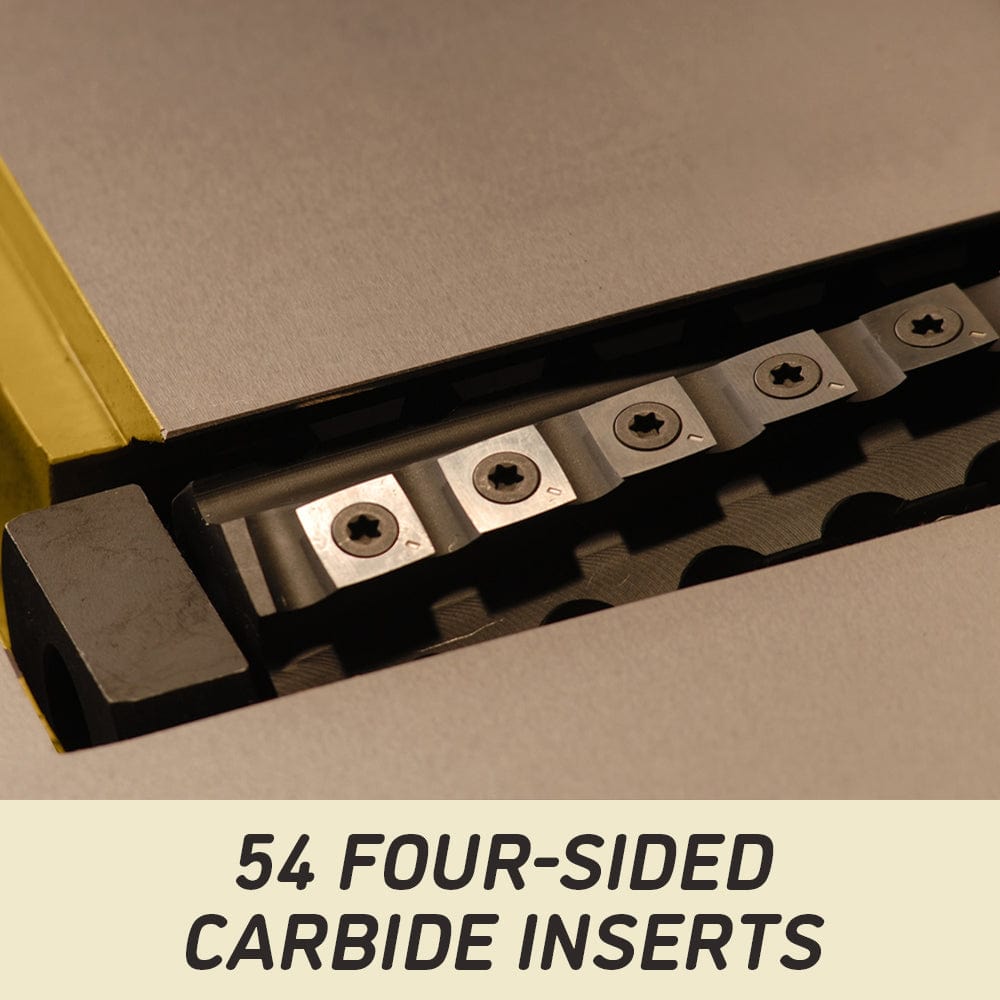

  • Helical cutterhead with 4-sided carbide inserts provides smoother, quieter cutting and a superior finish

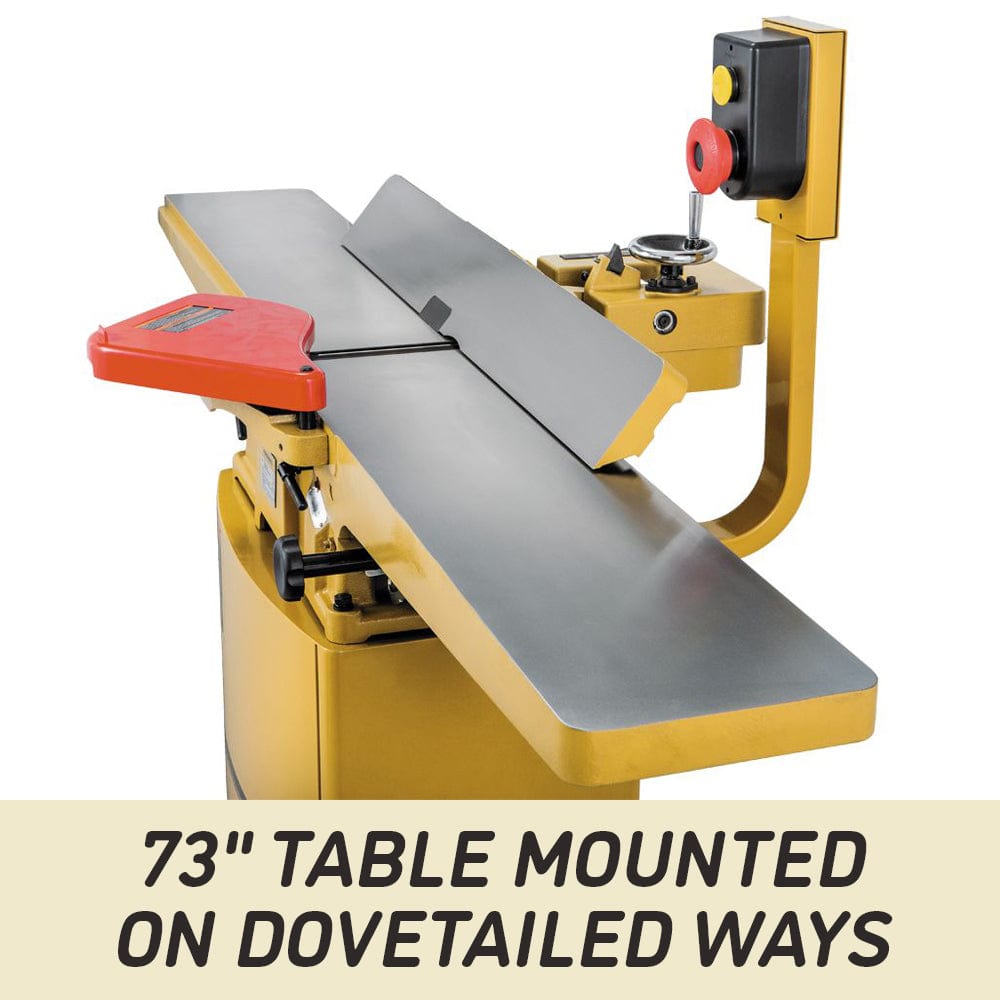

  • Extra-long tables are mounted on dovetailed ways for extended workpiece support
  • Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth

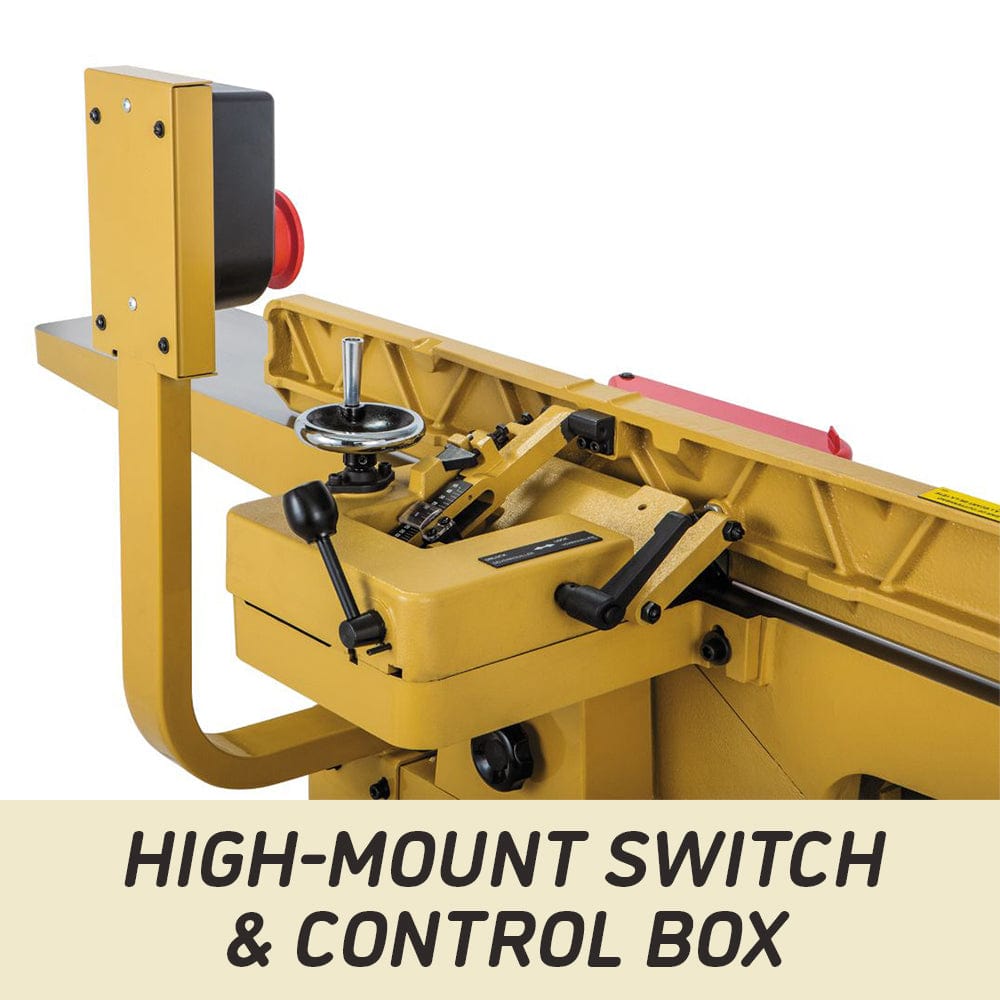

  • Switch is mounted high for operator convenience

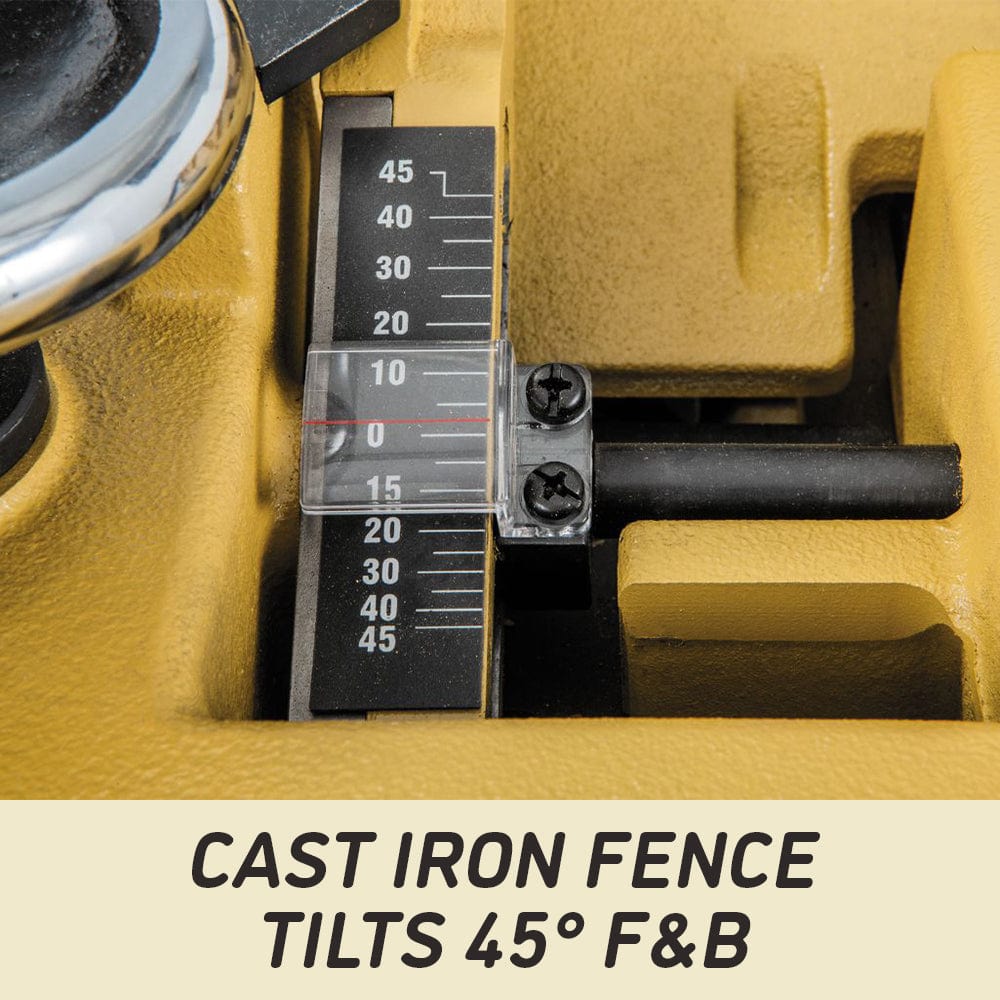

  • Handwheel operated worm gear system for smooth fence tilting
  • Magnetic push blocks can be stored on the machine within constant reach
  • Non-mar fence insert protects table surface

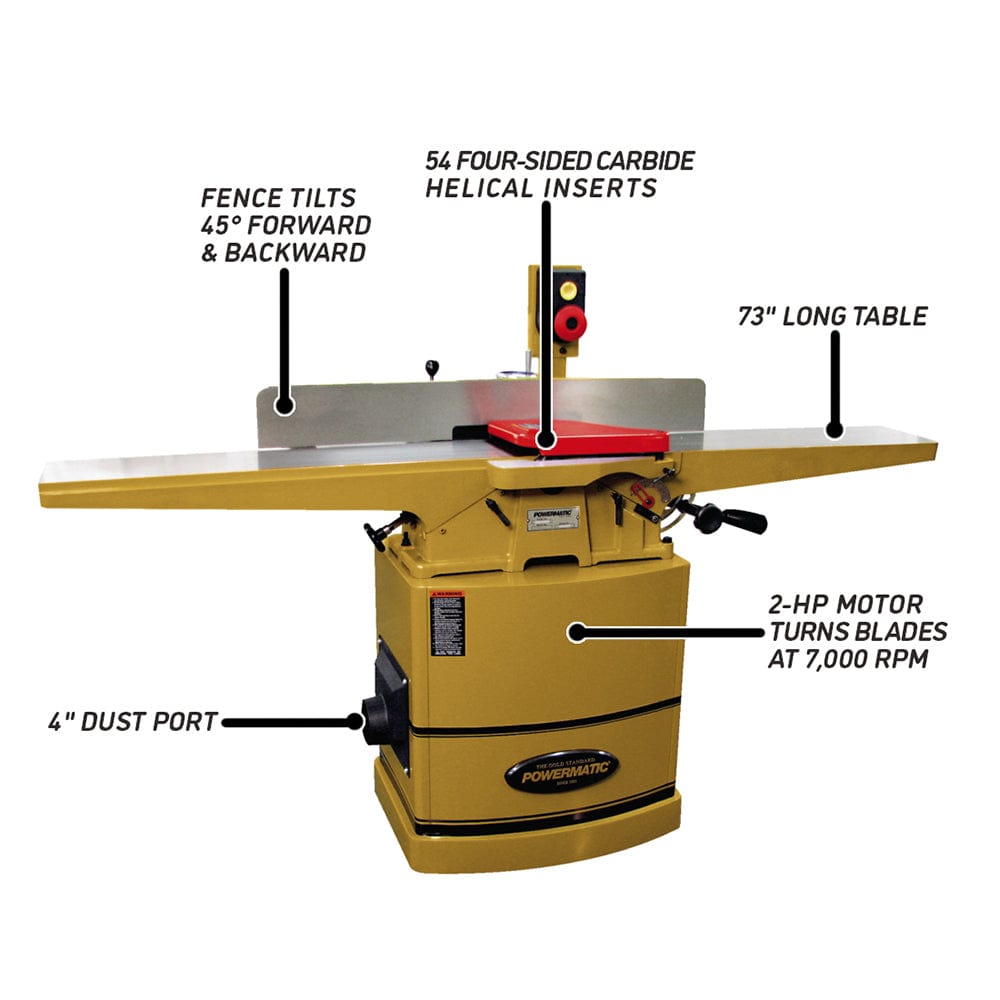

Specifications:
  • Motor: 2HP, 1PH, 230V, 9A
  • Number of Knives: 54
  • Helical Knife Size (L x W x T) (In.): 15 x 15 x 2.5
  • Cutterhead Speed (RPM): 7,000
  • Cutting Capacity (W x D) (In.): 8 x 1/2
  • Table Size (L x W) (In.): 73 x 8-1/2
  • Table Height from Floor (In.): 32
  • Infeed Table Length (In.): 35-1/4
  • Outfeed Table Length (In.): 35-1/2
  • Fence Size (L x H) (In.): 38 x 4-3/4
  • Fence Tilt (Deg.): 45 Forward, 45 Backward
  • Fence Positive Stops (Deg.): 45, 90, -45
  • Dust Collection Minimum CFM Required (CFM): 450
  • Dust Port Outside Diameter (In.): 4
  • Recommended Circuit Size (Amps.): 20V
