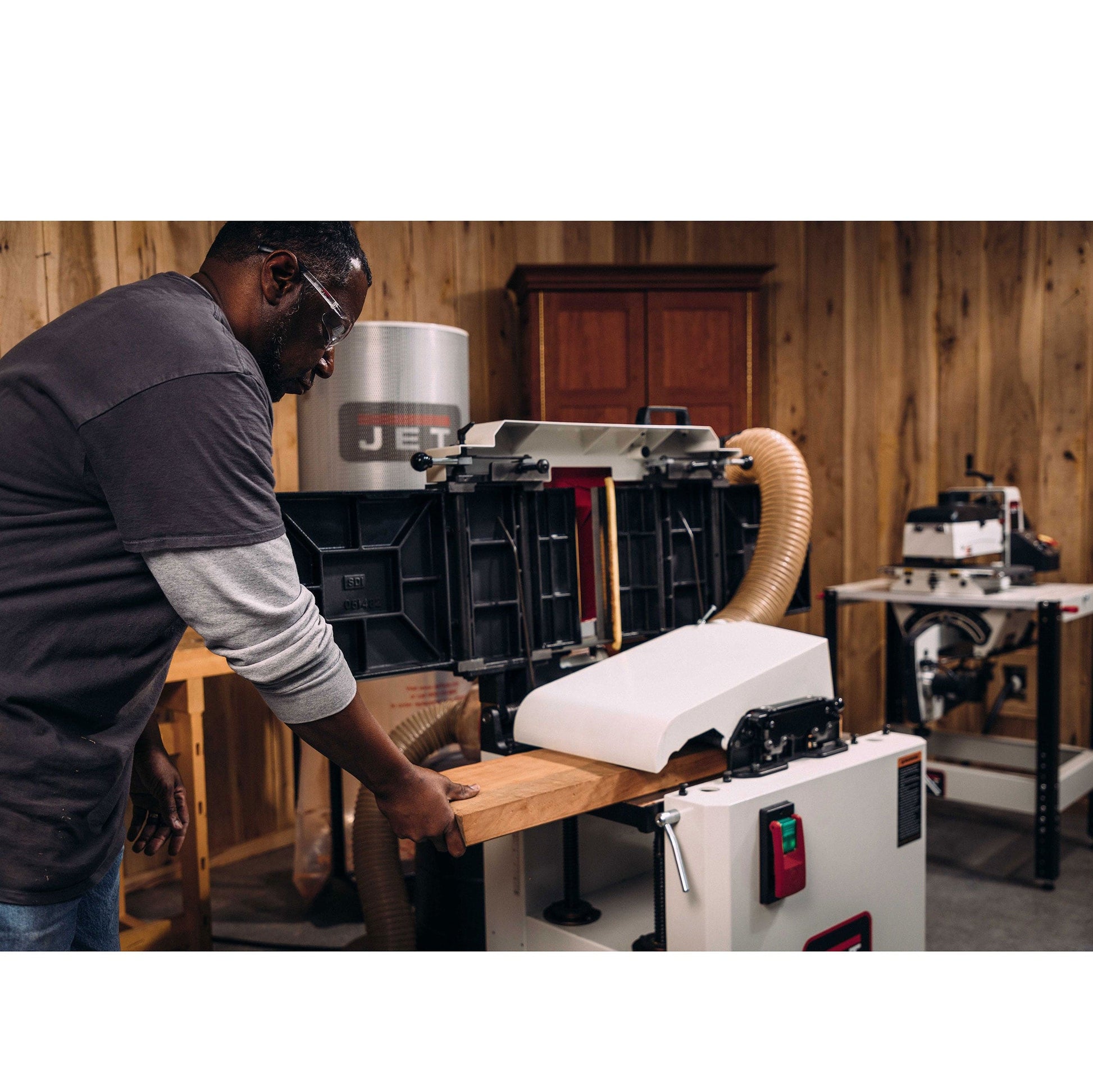

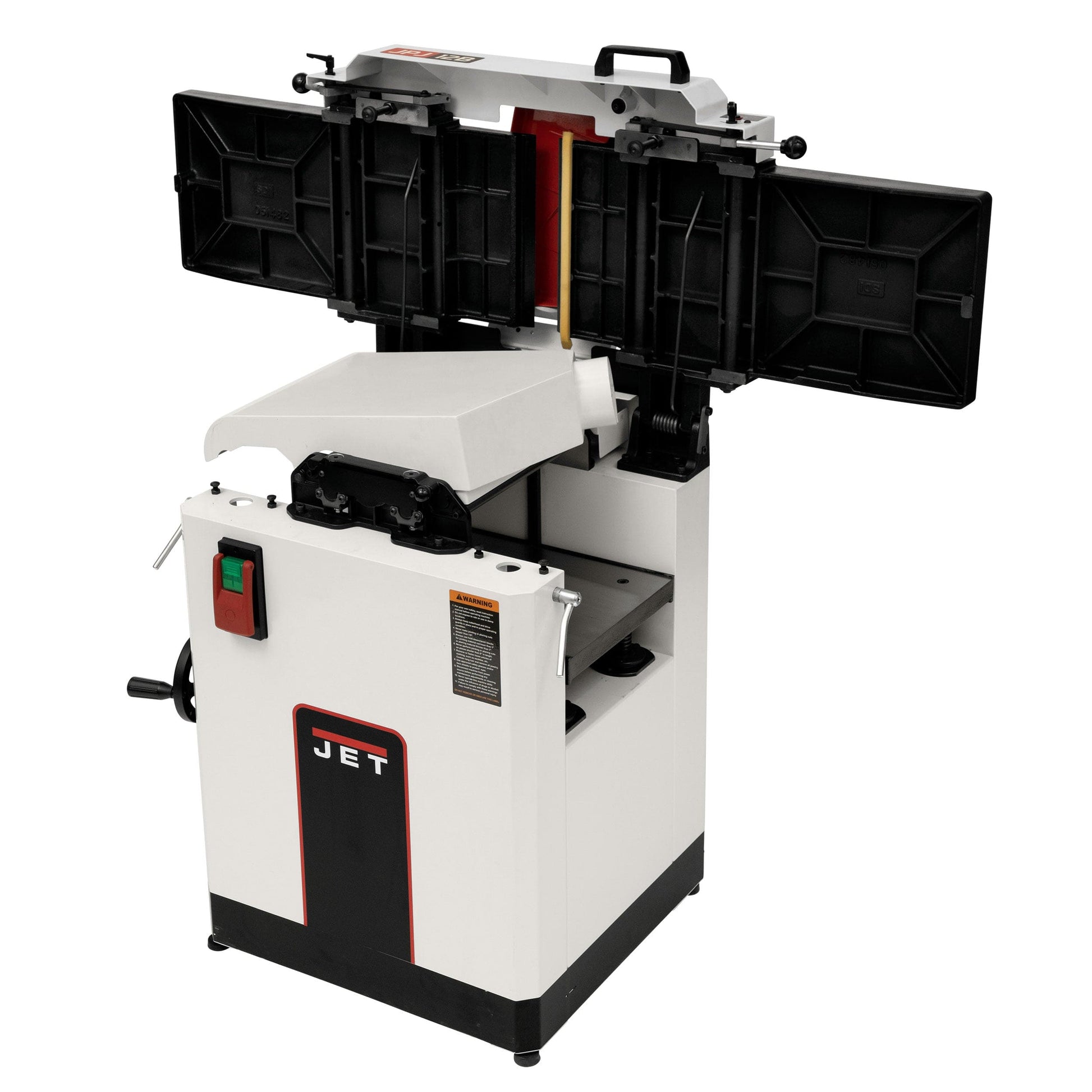

• Quick changeover between jointing and planing functions—fence does not need to be removed

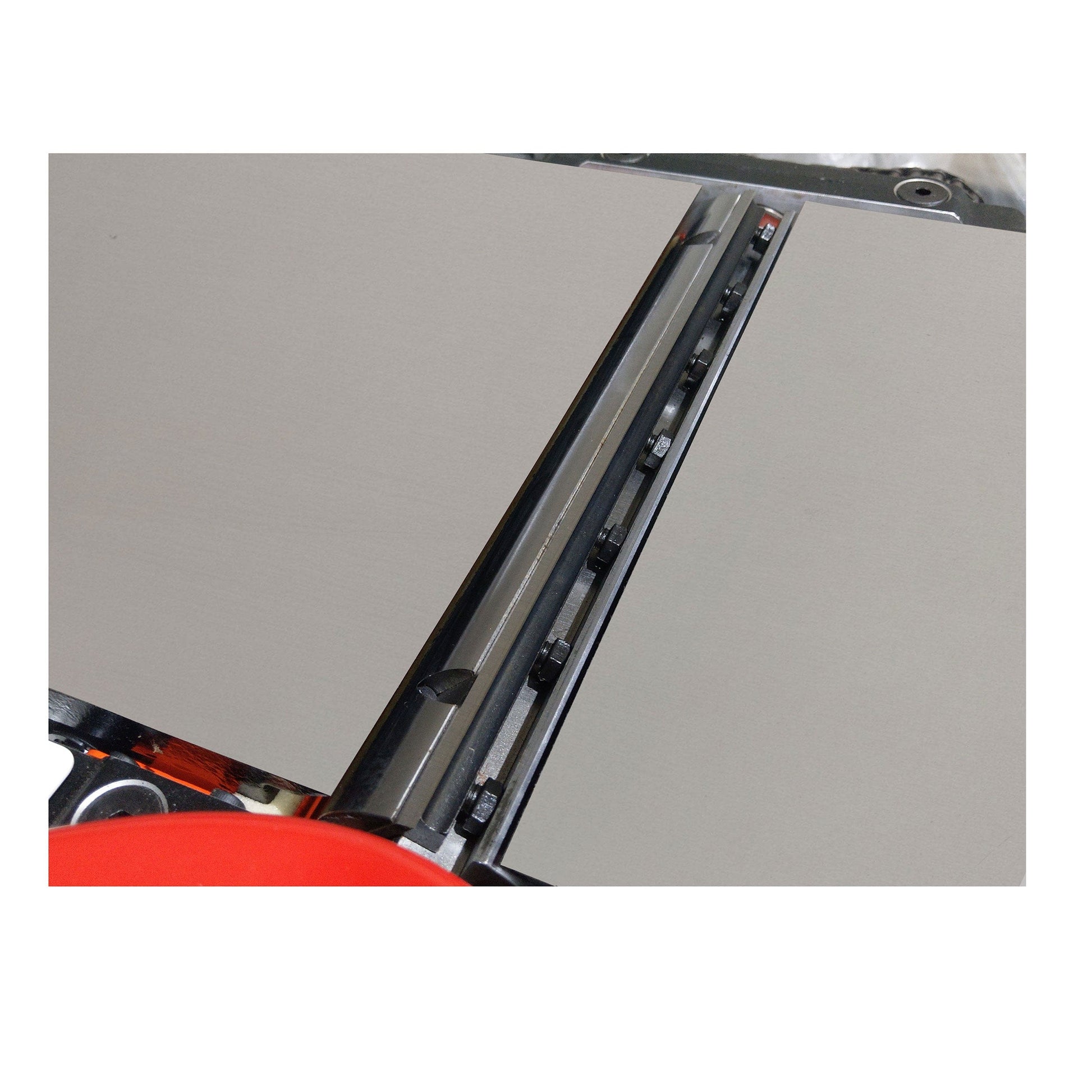

• Three high-speed steel knife cutter head provides rapid cutting and a superior finish

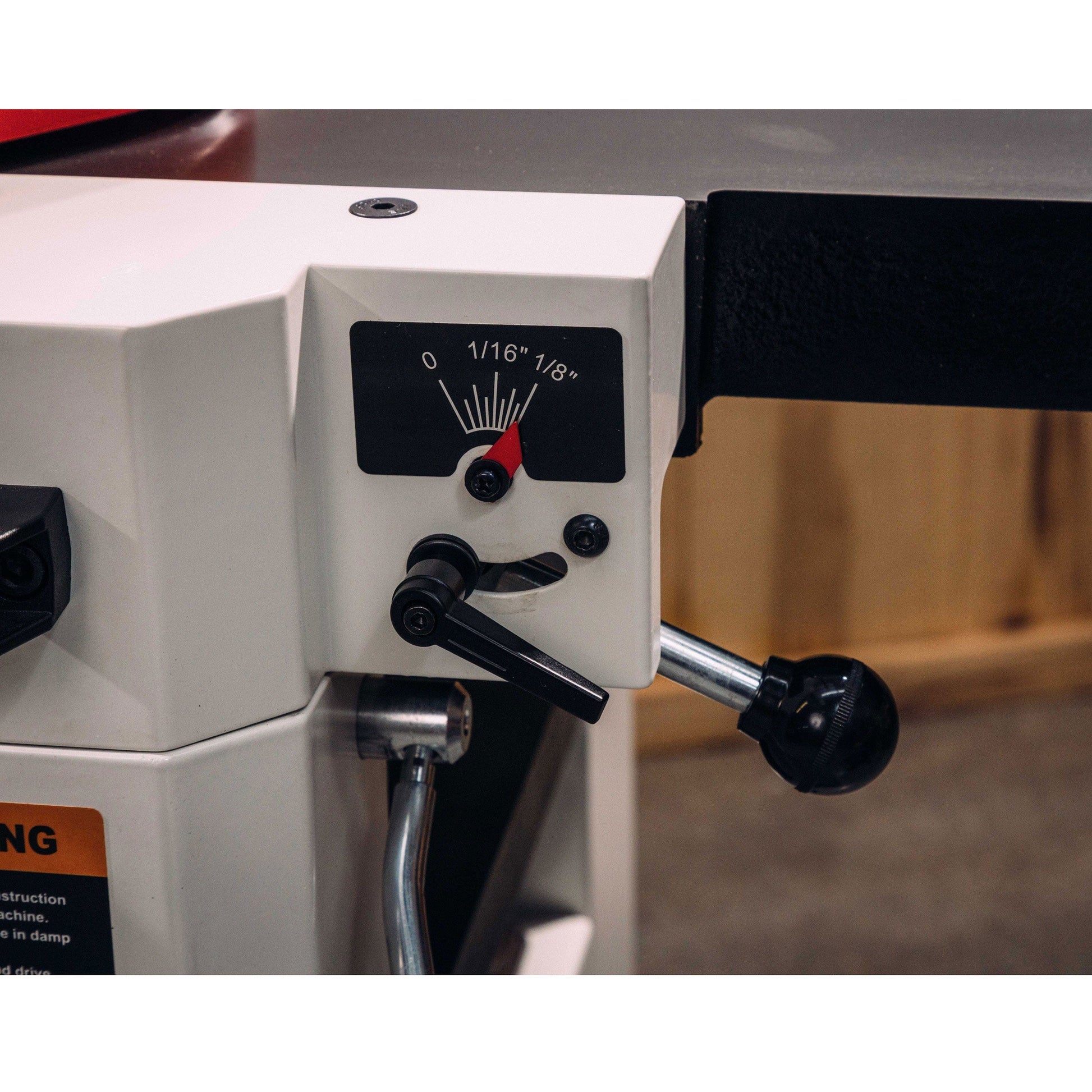

• Parallelogram design keeps the table close to the cutter head for improved finish and allows for precise depth of cut adjustments
• Heavy-duty cast iron tables with a ground finish to ensure accuracy and flatness
• Large handwheel for quick and precise adjustments of planer table
• Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability

• Type: Straight Knife Cutterhead
• Style: Floor Standing Model
• Motor Type: TEFC - Totally Enclosed, Fan-Cooled
• Motor Power: 3 HP
• Motor Phase: 1 Ph (single phase)
• Motor Voltage:230V only
• Full Load Amps: 15A
• Running Amps: 4.5A
• Cycle: 60 Hz
• Recommended Circuit Size: 30 Amps
• Knives: 3
• Standard Knife Size: 12-3/16" x 11/16" x 1/8"
• Cutterhead Diameter: 2-3/4"
• Cutter Head Speed: 5300 RPM
• Jointer Table Size: 55" x 12-1/32"
• Table Height from Floor: 33-1/2"

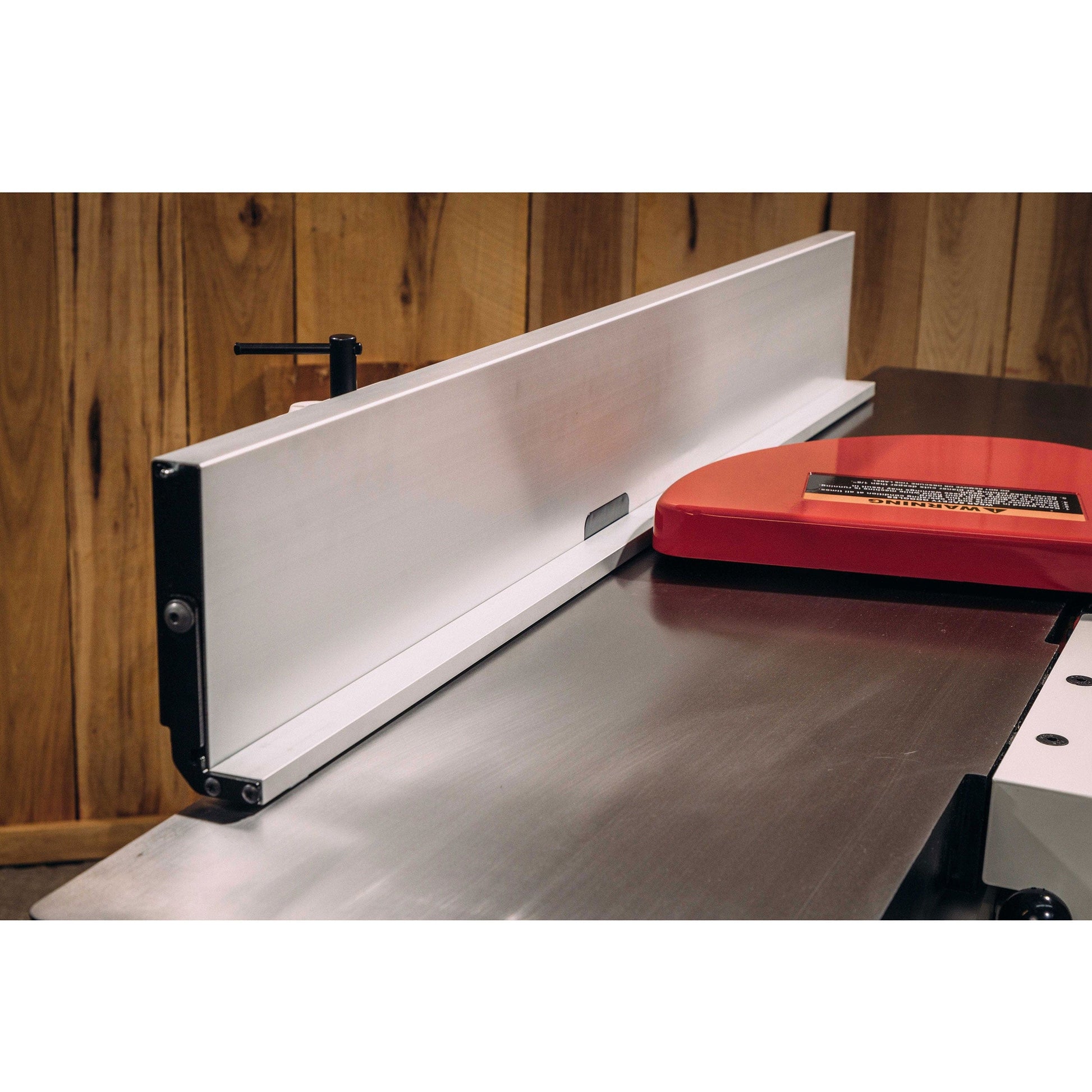

• Fence Size (L x H): 43-1/4" x 5-7/8"

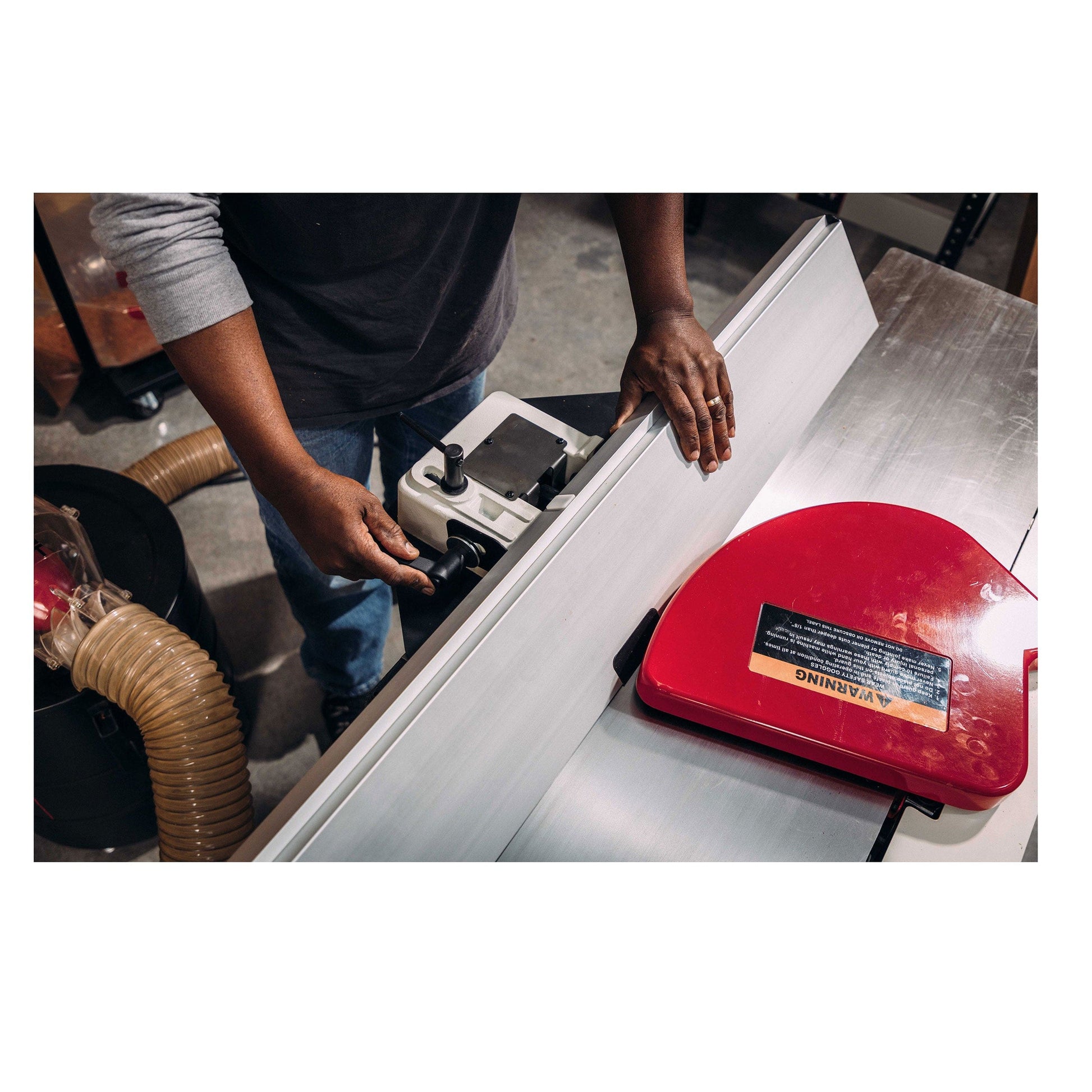

• Fence Tilt: 90° to 45° R
• Fence Positive Stops (degrees): 90° and 45° R
• Fence Travel: 6"
• Planer Table Size (L x W): 25" x 12-1/32"
• Planing Maximum Workpiece Thickness: 8-3/4"
• Planer Maximum Depth of Cut: 5/32"
• Planing Minimum Length of Workpiece: 10"
• Table Movement Per One Handwheel Revolution: 5/32"

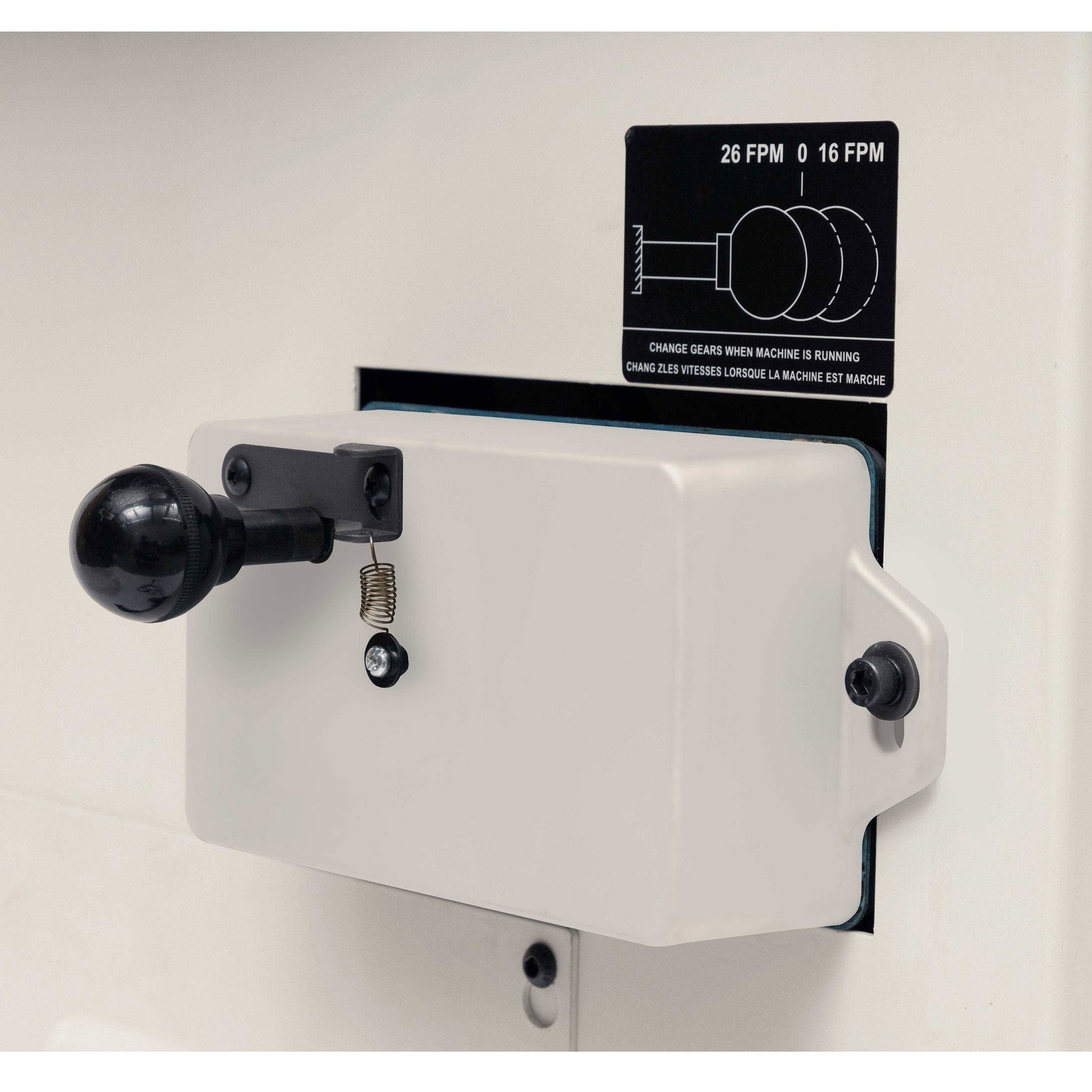

• Feed Rate: 2 speed 16 to 26 FPM
• Dust Port: 4"
• Dust Collection Minimum CFM Required: 550
• Overall Dimensions (L x W x H): 55-7/16" x 28-15/16" x 40"
• Stand Footprint (L x W): 24" x 21-1/4"
• Net Weight: 453 lbs.

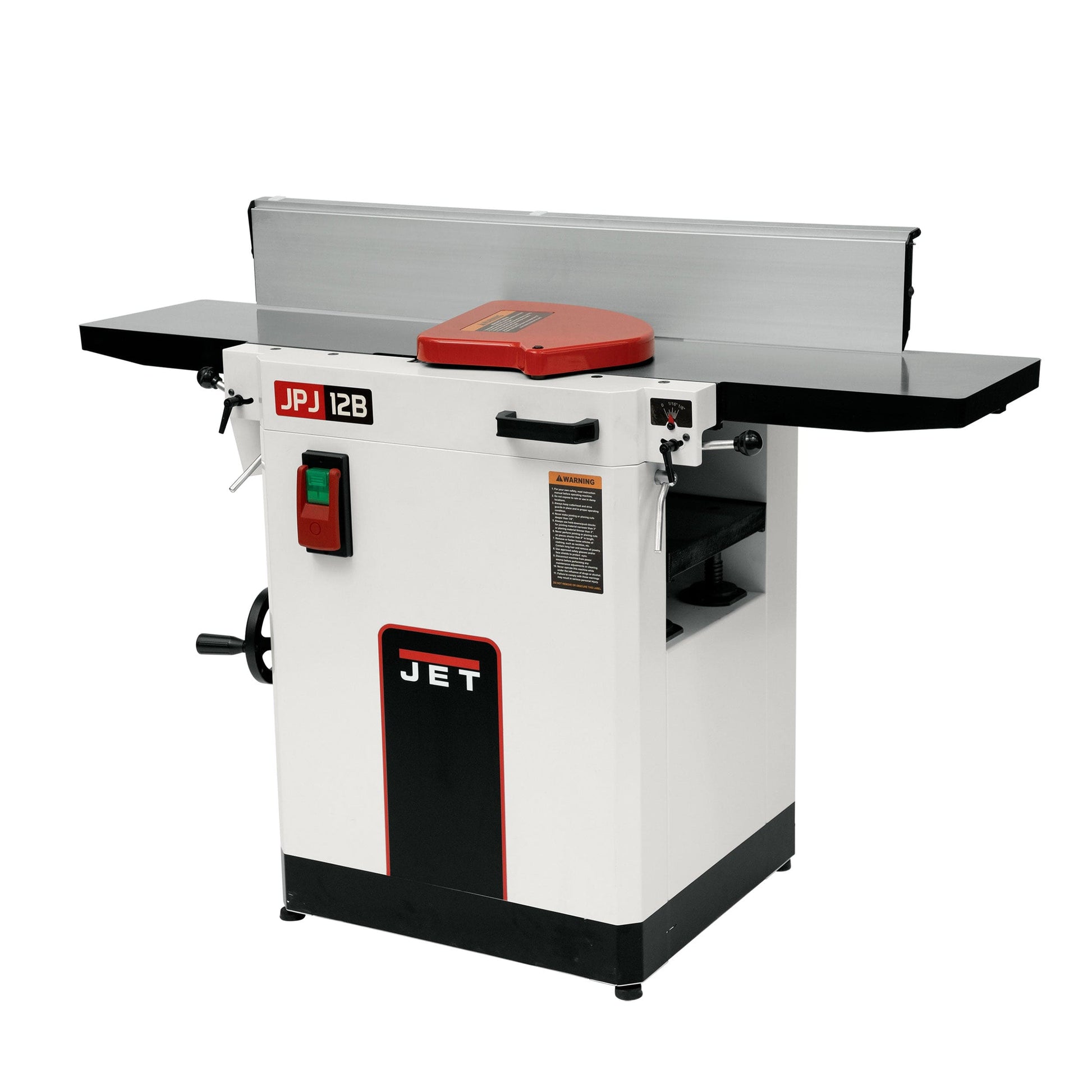

• (1) Jet®JPJ-12B 12"Planer/Jointer
• (2) Push Blocks
• (1) 6mm Hex Wrench
• (1) Aluminum Knife Gauge
• (1) Owners manual
• (1) Warranty Card

• Jointer-Planer is rated at 230V. This machine is not supplied with a plug.
• Use a plug and outlet rated at least 30 amps.
• The circuit for the machine should also be protected by at least a 30 amp circuit breaker or fuse.
