Microjig

Microdial Tapering Jig

Item #856320 Model TJ-5000
Regular price $126.99
Sale price $126.99 Regular price $126.99
The Microdial Tapering Jig by Microjig® helps you achieve cutting edge tapers. You will be able to create tapered legs with up to eight tapered si. . . View More Details

In Stock

Shipping Info

Details

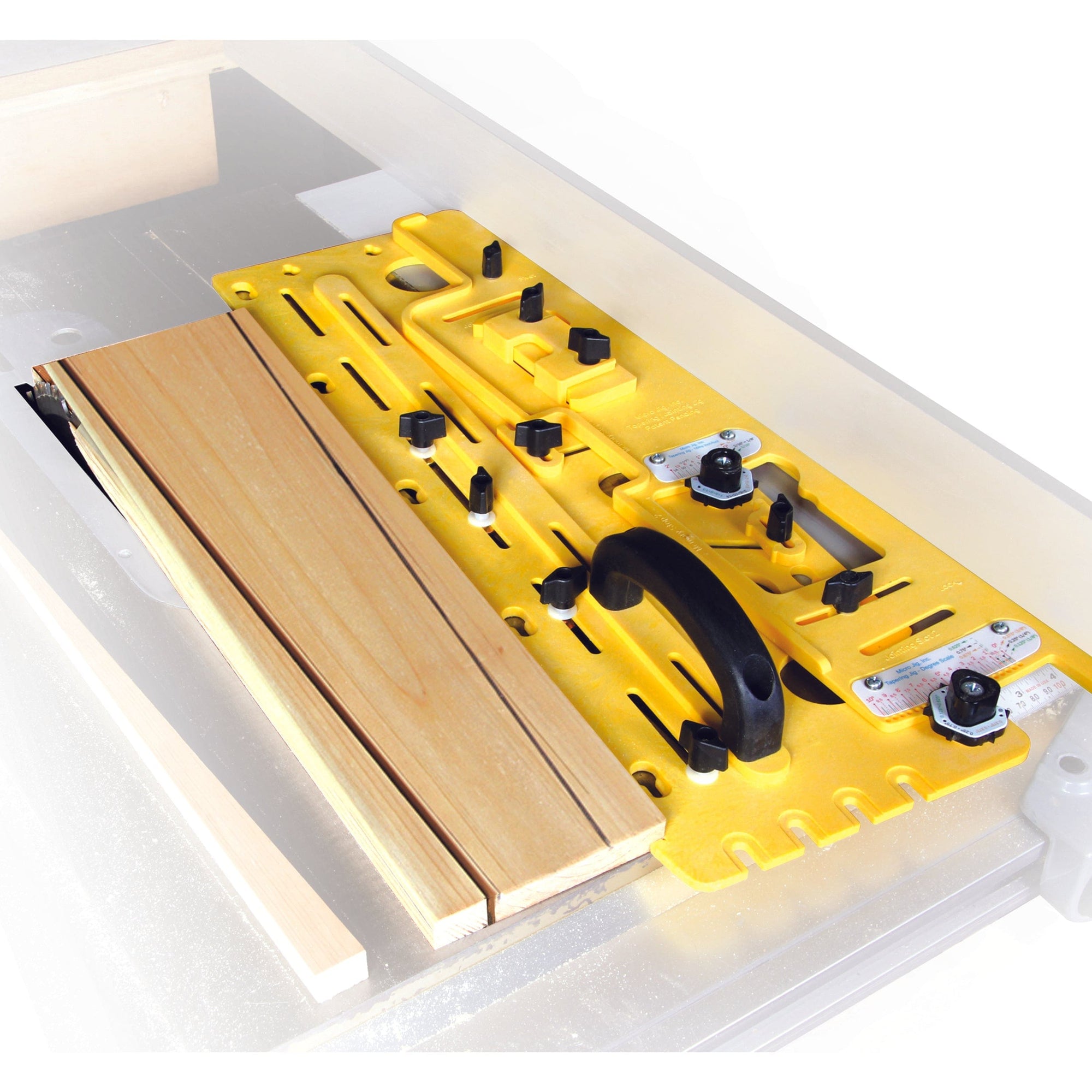

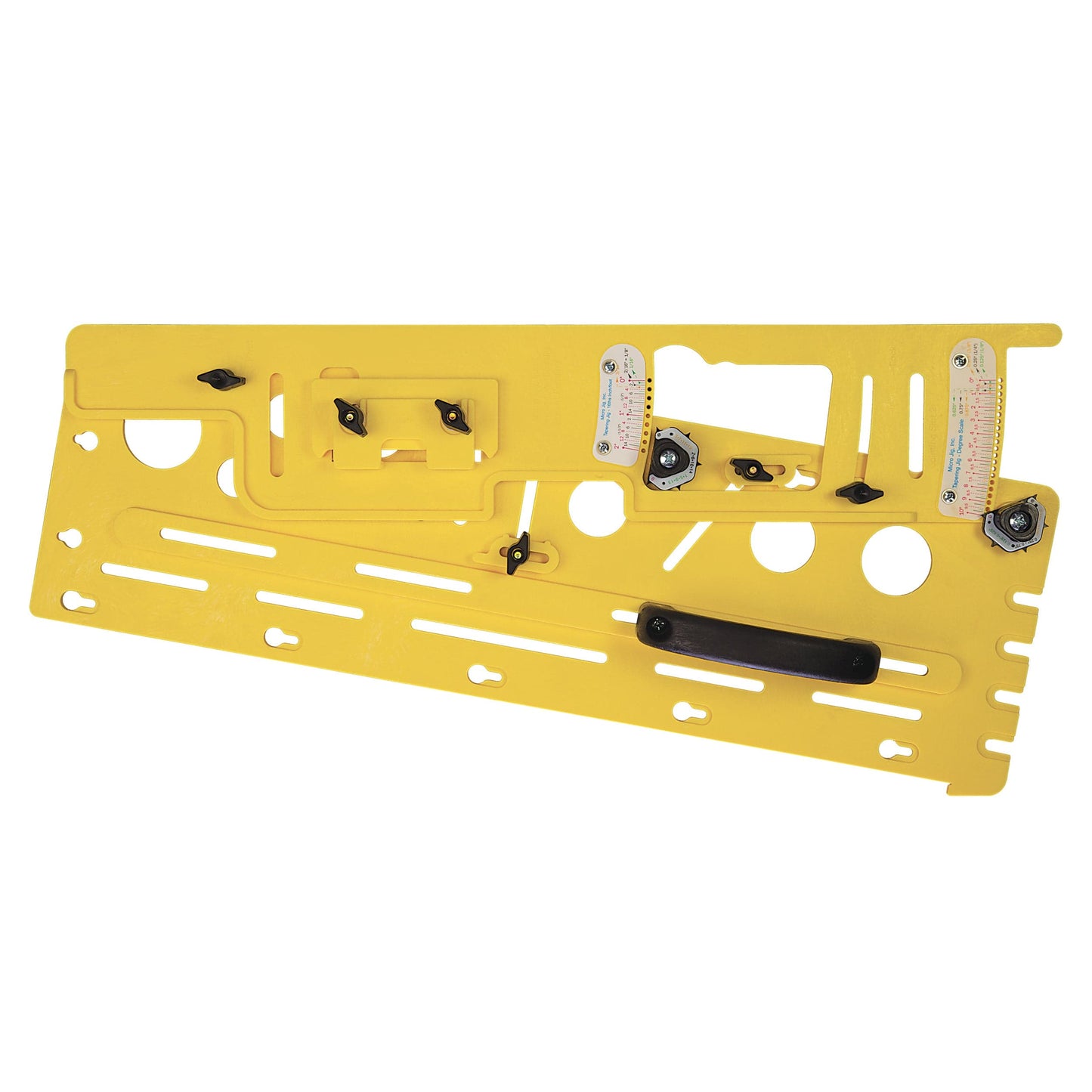

The Microdial Tapering Jig by Microjig® helps you achieve cutting edge tapers. You will be able to create tapered legs with up to eight tapered sides. Meanwhile, tapers can be cut from an infinite range between 0˚ to 10˚ with 1/8˚ incremental stops. You can also adjust tapers between 0 to 2 inches with 1/16 inch intervals. Once decided, the two adjustable dials then will lock into your preferred configuration, and lock the two MemoryLocks to allow easy repetitive cuts of the same taper.

Features:


  • Use as a guide for edge jointing on a table saw and straight line ripping
  • Versatile taper jig works with a table saw or a router table
  • Cut 2-,4-,6- and 8-sided tapered table legs for signature detail
  • Two independent MemoryLocks to preserve taper settings for repetitive cuts
  • Allows for repetitve tapered cuts
  • Enhanced precision when cutting edge tapers
  • Works in tandem with the GRR-Ripper
  • Made in the USA

Specifications:

  • Infinite taper adjustment between 0° and 10° with positive stops at 1/8° increments
  • Adjustable tapers between 0" and 2" per foot with positive stops at 1/16" per foot increments
  • Model: TJ-5000

What's Included:

  • (1) Microjig Microdial Tapering Jig
  • (1) Quickstart DVD
  • (1) Detailed instructional manual
  • (1) Project Plan

Notes:

  • Combine the Microdial with the GRR-Ripper Advanced Model (sold separately) to enhance your safety and woodworking. The addition of the GRR-Ripper will allow users to apply pressure in three dimensions: downward, inward, and forward; this will virtually eliminate kickback and should always be used when cutting narrow or small work pieces.
