Powermatic

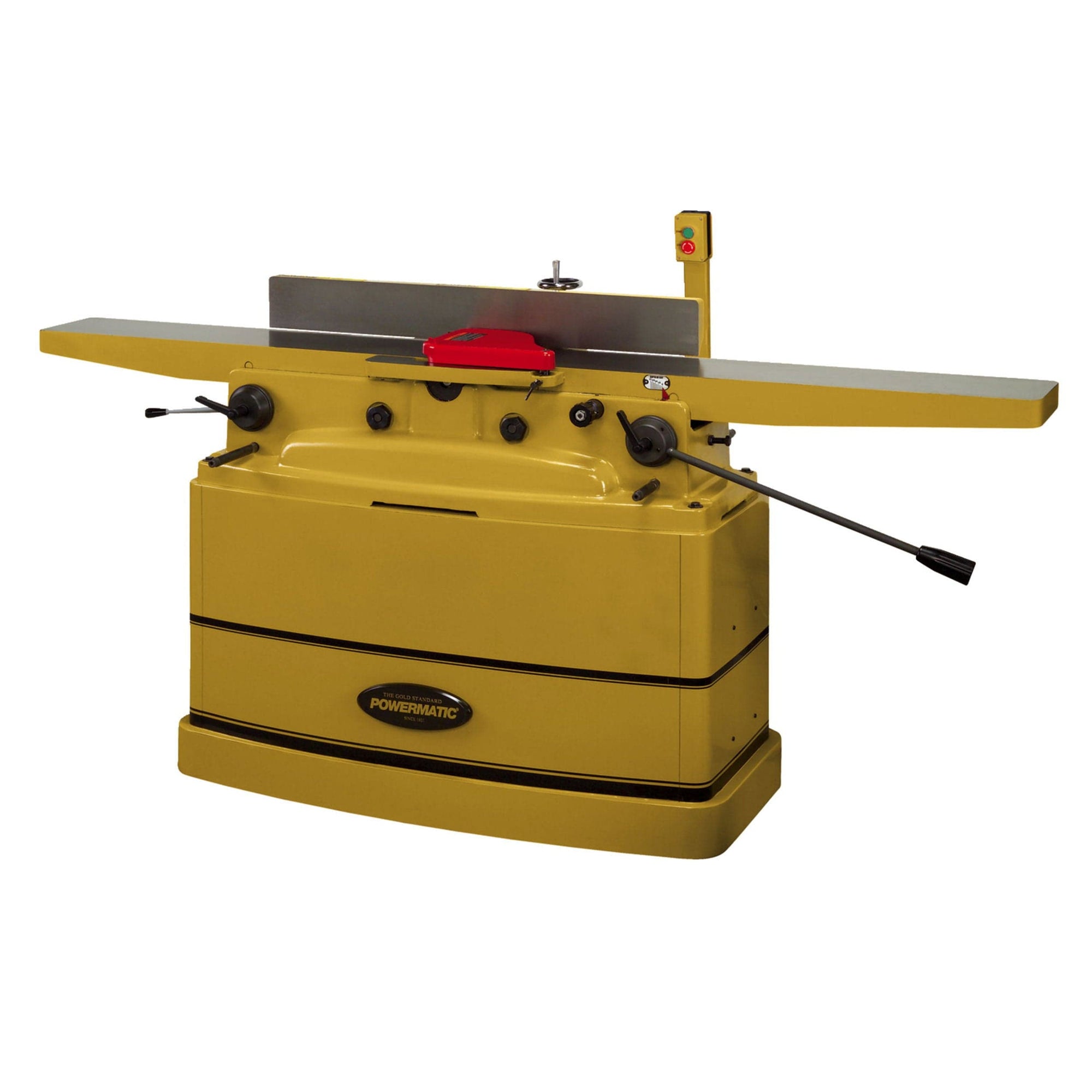

8" Parallelogram Jointer - 2 HP 1 Ph 230V - PJ-882HH

Item #838342 Model PM9-1610082
$4,499.99
$4,499.99 $4,499.99

This item has an additional shipping charge

  • 8" Parallelogram Jointer - 2 HP 1 Ph 230V - PJ-882HH alt 0
1 1

Powermatic

8" Parallelogram Jointer - 2 HP 1 Ph 230V - PJ-882HH

Item #838342 Model PM9-1610082
$4,499.99
$4,499.99 $4,499.99

This item has an additional shipping charge

The 8" Parallelogram Jointer offers performance and value in a machine loaded with features. The cutterhead is a helical design with 54 four-sided kni. . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

  • Magnetic Jointer Knife Setting Jig - Polycarbonate Body

    $33.99
    $33.99 $33.99
    Magnetic Jointer Knife Setting Jig - Polycarbonate Body alt 0

  • Mobile Base for PJ882 and PJ-882HH 8" Jointers

    $379.99
    $379.99 $379.99
    Mobile Base for PJ882 and PJ-882HH 8" Jointers alt 0

Details

The 8" Parallelogram Jointer offers performance and value in a machine loaded with features. The cutterhead is a helical design with 54 four-sided knife inserts – these produce a superior finish and much quieter operation than conventional cutterheads, and the inserts do not require adjustment once installed. The Jointer has an extra long 82” bed for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees. A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also insures the table remains perfectly parallel, even after years of heavy use. The 2HP motor is totally enclosed in a heavy steel stand, providing plenty of power and stability for the most demanding jobs.

Features:
• Helical cutterhead with knife inserts provides smoother, quieter cutting and finer finish than conventional systems
• Extra long 82" table for expanded work support
• Parallelogram design helps maintain table parallelism and eases table raising and lowering
• Handwheel with worm gear system for precise fence tilting (Patented)
• 1/8" depth of cut limiter for fast table positioning
• High-mount switch for operator convenience
• No-mar fence insert protects table
Specifications:
Cutterhead Diameter (in) : 3-1/16
Cutterhead Speed (RPM) : 7000
Cutting Capacity (W x D/in) : 8 x 1/2
Dust Collection Minimum CFM Required : 800
Dust Port Diameter (OD/in) : 4
Fence Positive Stops (deg.) : +/-45, 90
Fence Size (L x H/in) : 44-3/4 x 38-3/16
Fence Tilts (deg.) : 45
Height (in): 44
Infeed Table Length (in): 44
Length ((in): 84
Motor Amps : 9
Motor HP : 2HP
Motor Phase : 1PH
Motor Voltage : 230V
Net Weight : 732 pound
Number of Knives (Helical/Standard) : 54 four-sided inserts
Outfeed Table Length (in) : 38
Overall Dimensions : 84 x 28 x 44
Part Number : 1610082
Ship Weight : 764 pound
Table Height (in) : 31-5/16
Table Size (L x W/in) : 83 x 8
Width : 28 (in)
Shipping weight 764 lb.
