Sawstop

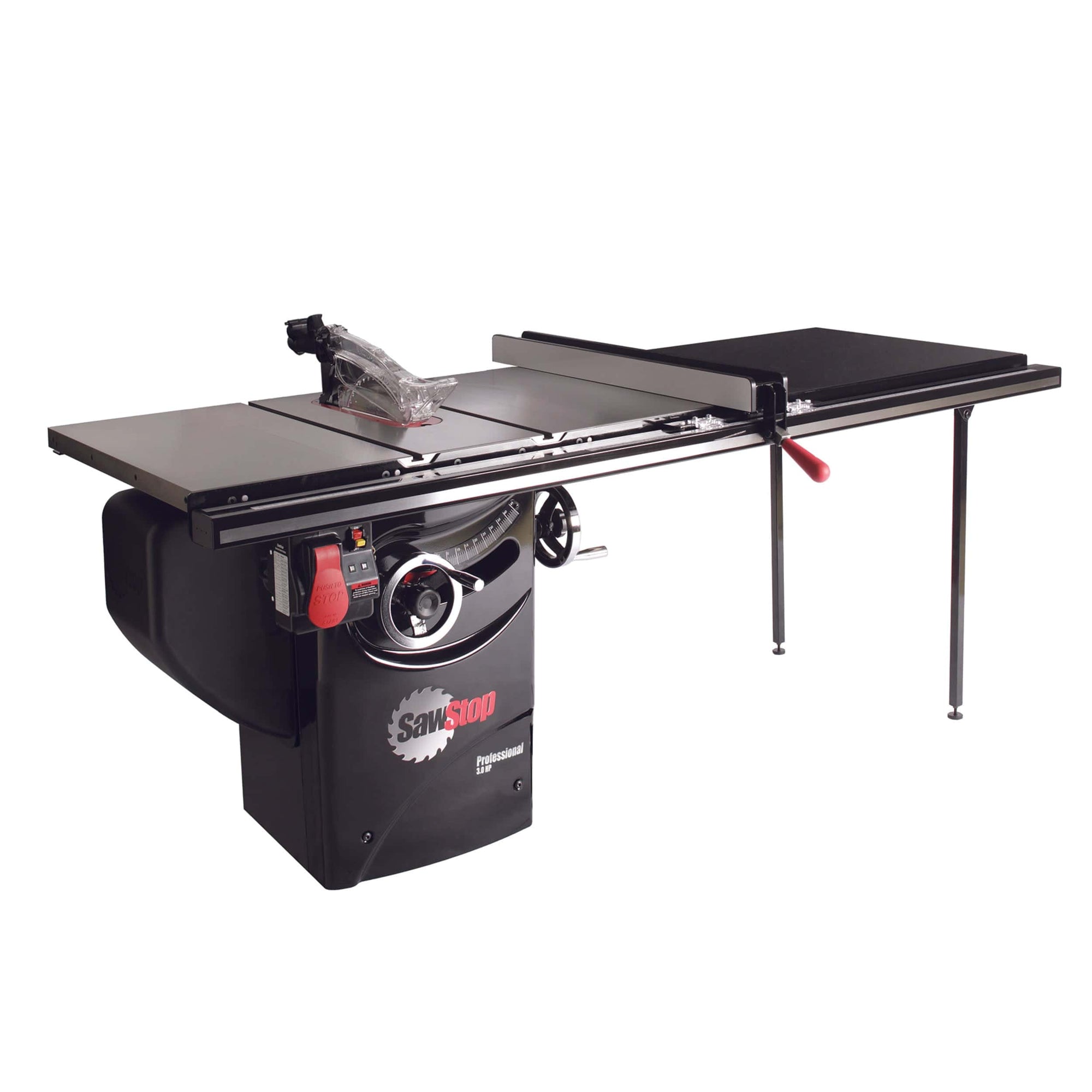

3 HP Professional Cabinet Saw - 230V 1-Phase - 52" Professional T-Glide Fence System

Item #847463 Model PCS31230-TGP252
$ 3,759 00
$ 3,759 00 Was $3,759.00
Purchase Any Professional Cabinet Saw & Choose a FREE UPGRADE! One Of Three Options Up To $308 Value. Mail-In Offer!
1 2

Sawstop

3 HP Professional Cabinet Saw - 230V 1-Phase - 52" Professional T-Glide Fence System

Item #847463 Model PCS31230-TGP252
$ 3,759 00
$ 3,759 00 Was $3,759.00
Purchase Any Professional Cabinet Saw & Choose a FREE UPGRADE! One Of Three Options Up To $308 Value. Mail-In Offer!
The SawStop® 3 HP 10" Professional Cabinet Saw offers unmatched fit and finish and superior cutting performance to avid hobbyists and small-s. . . View More Details

Enjoy Extended Coverage with a Woodcraft Protection Plan

Backordered Online Shipping Info
Items you may need

  • PCS Professional Saw Mobile Base

    $ 349 00
    $ 349 00 Was $349.00
    PCS Professional Saw Mobile Base alt 0

  • Over-Arm Dust Collection Assembly

    $ 299 00
    $ 299 00 Was $299.00
    Over-Arm Dust Collection Assembly alt 0

  • Saw Gauge with Dial Indicator

    $ 99 99
    $ 99 99 Was $99.99
    Saw Gauge with Dial Indicator

  • Glue Line Rip Saw Blade - 10" x 5/8" Bore x 30T - TCG

    $ 86 99
    $ 86 99 Was $86.99
    Glue Line Rip Saw Blade - 10" x 5/8" Bore x 30T - TCG alt 0

  • Stacked Dado Set - 8" x 5/8" Bore x 24T - Hi ATB

    $ 209 99
    $ 209 99 Was $209.99
    Stacked Dado Set - 8" x 5/8" Bore x 24T - Hi ATB alt 0

  • TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 30T - AR - Full Kerf

    $ 129 99
    $ 129 99 Was $129.99
    TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 30T - AR - Full Kerf

  • Dado Nut for SawStop Table Saws

    $ 44 99
    $ 44 99 Was $44.99
    Dado Nut for SawStop Table Saws

  • Thin Rip Guide

    $ 169 99
    $ 169 99 Was $169.99
    Thin Rip Guide

  • Spline Jig

    $ 159 99
    $ 159 99 Was $159.99
    Spline Jig

  • Align-A-Saw Gauge & Base

    $ 89 99
    $ 89 99 Was $89.99
    Align-A-Saw Gauge & Base

  • Align-A-Saw Plate

    $ 159 99
    $ 159 99 Was $159.99
    Align-A-Saw Plate

  • Super Stack Dado Set - 8" x 5/8" Bore x 24T

    $ 275 99
    $ 275 99 Was $275.99
    Super Stack Dado Set - 8" x 5/8" Bore x 24T

  • Box & Finger Joint Blade Set (1/4" - 3/8") - 2 Piece - 8" x 5/8" Bore x 30T

    $ 169 99
    $ 169 99 Was $169.99
    Box & Finger Joint Blade Set (1/4" - 3/8") - 2 Piece - 8" x 5/8" Bore x 30T

  • TS2000 Flat Top Box Joint Blade - 10" x 5/8" Bore x 40T - STR - Full Kerf

    $ 149 99
    $ 149 99 Was $149.99
    TS2000 Flat Top Box Joint Blade - 10" x 5/8" Bore x 40T - STR - Full Kerf

  • TS2000 Ultra Combo Saw Blade - 10" x 5/8" Bore x 48T - ATB - Full Kerf

    $ 159 99
    $ 159 99 Was $159.99
    TS2000 Ultra Combo Saw Blade - 10" x 5/8" Bore x 48T - ATB - Full Kerf

  • Melacrafter Saw Blade - 10" x 5/8" Bore x 80T - ATB - Full Kerf

    $ 149 99
    $ 149 99 Was $149.99
    Melacrafter Saw Blade - 10" x 5/8" Bore x 80T - ATB - Full Kerf

  • Heavy Duty TS2000 Super Rip Saw Blade - 10" x 5/8" Bore x 24T - STR - Full Kerf

    $ 139 99
    $ 139 99 Was $139.99
    Heavy Duty TS2000 Super Rip Saw Blade - 10" x 5/8" Bore x 24T - STR - Full Kerf

  • TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 40T - AR - Full Kerf

    $ 149 99
    $ 149 99 Was $149.99
    TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 40T - AR - Full Kerf

  • TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 40T - AR - Thin Kerf

    $ 159 99
    $ 159 99 Was $159.99
    TS2000 Super Combo Saw Blade - 10" x 5/8" Bore x 40T - AR - Thin Kerf

Details

The SawStop® 3 HP 10" Professional Cabinet Saw offers unmatched fit and finish and superior cutting performance to avid hobbyists and small-shop pros. At 230V power, the optimized footprint makes this table saw ideal for the many challenges of a home shop. With SawStop's legendary safety system, uncompromising quality, and industry-leading dust collection, the PCS™ table saw is the cornerstone of a high-end home shop.

Features:

  • SawStop’s patented safety system
  • Riving knife reduces the risk of kickback
  • Tool-free quick-change blade guard mount
  • Diagnostic system ensures the saw is ready to respond
  • Dust-Collection Blade Guard
  • 52" Professional T-Glide Fence System provides smooth operation and precise measurement

Specifications:

  • Product Type: Cast Iron Table Saw
  • Overall saw dimensions: 85-1/4" x 33" x 34"
  • Cabinet footprint: 19-3/8" x 19-3/8"
  • Cast-iron table: 20" x 27"
  • Cast-iron table size with extension wings: 44" x 27"
  • Motor: 3 HP, 1-Phase, 230V, 13A
  • Weight: 449 lbs.
  • Blade: 40-tooth, professional grade, 5/8" arbor
  • Blade diameter: 10"
  • Blade tilt: left
  • Blade kerf: 0.118" (3mm)
  • Blade plate thickness: 0.078"
  • Max. depth of cut, blade at 0º: 3-1/8"
  • Max. depth of cut, blade at 45º: 2-1/4"
  • Max. rip, left of blade: 12"
  • Dado diameter: 8" (requires a separate brake cartridge and table insert)
  • Dado max. width: 13/16"
  • Arbor diameter at blade: 5/8"
  • Table in front of blade (max. elevation): 10-1/4"
  • Table behind blade (max. elevation): 7-1/2"
  • Table flatness measured diagonally: 0.010" maximum gap
  • Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
  • Dust-collection port diameter: 4"
  • Riving knife/splitter thickness: 0.078" (2mm)
  • Blade guard: polycarbonate, extends only 5/8" to right of blade
  • Insert: zero clearance, steel core, ABS surfaces
  • Belts: 2 V-ribbed belts – arbor belt is static dissipative

What's Included:

  • (1) SawStop PCS™ 3HP Table Saw Body
  • (1) T-Glide Pro 52" Table
  • (1) T-Glide Pro Fence
  • (1) T-Glide Pro 52" Rails
