Whiteside

Ball Nose CNC Router Bits - 1/4" SH

Item #161278 Model SC64
Regular price $54.99
Sale price $54.99 Regular price $54.99
Create a variety of carved designs with this Whiteside 1/16" Ball Nose CNC Router Bit and your CNC machine. Small tip allows for intricate details in . . . View More Details
Cutting Radius
Cutting Length

In Stock

Shipping Info

Items you may need

  • 1550 60° V-Groove CNC Router Bit 1/4" SH 1/2" D X 7/16" P X 2" OL

    Regular price $26.99
    Sale price $26.99 Regular price $26.99
    1550 60° V-Groove CNC Router Bit 1/4" SH 1/2" D X 7/16" P X 2" OL alt 0
  • Upcut Spiral Router Bit - 1/4" SH

    Regular price From $21.99
    Sale price From $21.99 Regular price $21.99
    CARBIDE SPIRAL BIT 1/8" 1/4"SH alt 0
  • 1502 90-Degree V Groove Router Bit 1/4" SH 1/2" D X 1/4" P X 1-7/8" OL

    Regular price $24.99
    Sale price $24.99 Regular price $24.99
    1502 90-Degree V Groove Router Bit 1/4" SH 1/2" D X 1/4" P X 1-7/8" OL alt 0
  • CNC Router Bit Set - 1/4" SH

    Regular price From $158.99
    Sale price From $158.99 Regular price $158.99
    CNC Starter Set 5pc alt 0

Details

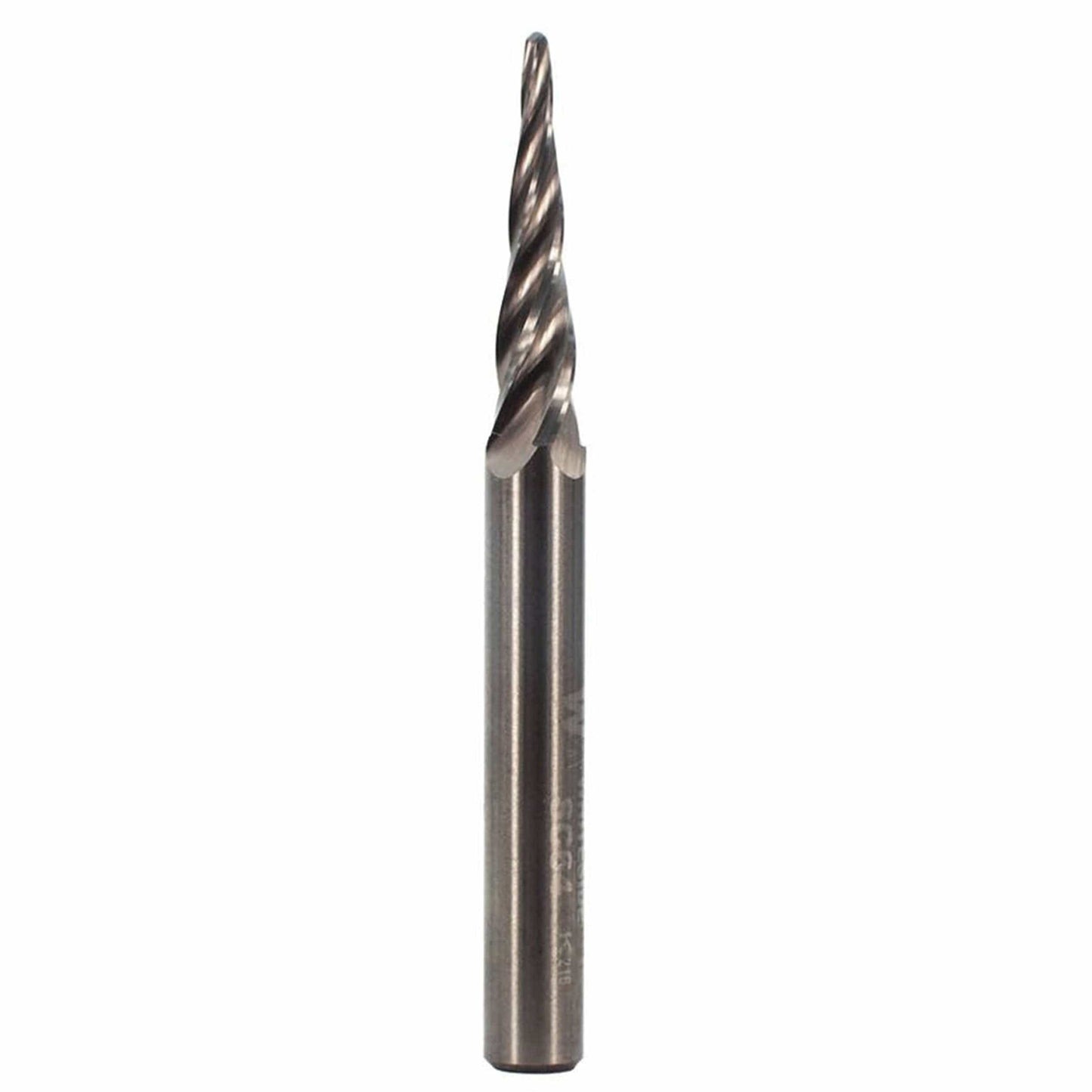

Create a variety of carved designs with this Whiteside 1/16" Ball Nose CNC Router Bit and your CNC machine. Small tip allows for intricate details in your design. Four flutes cleanly rout out design for smooth, crisp edges. Solid carbide.

Specifications

• Shank: 1/4"

• Ball Size: 1/16"

• Radius: 1/32"

• Angle: 11°

• Cut Length: 7/8"

• Flutes: 4

Download Vectric 161278 File
Tool #161278 Vectric Compatible Tool File
161278 tool file to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve.
This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material.
Installation:
To add a .tool file, open the Tool Database in your software after safely downloading the .tool file. Select the Import Option to add the downloaded .tool files into the software. Only use the .tool file for the specific Whiteside part number. By downloading any of these .tool files, you acknowledge the safety information below.
Safety:
1) Never use the .tool file for any bit other than the specified Whiteside part number.
2) Always wear eye and ear protection along with dust masks. Avoid using bits while in loose clothing. Keep hands, body, clothing and hair away from the cutter.
3) Do not remove safety guards, and be sure to always feed against the cutter rotation. Never use dull or damaged cutters.
4) Disconnect power when changing bits or making adjustments, and always leave the power disconnected when not in use.
5) Follow all safety recommendations of the power tool manufacturer.
6) Whiteside Machine Company assumes no responsibility for defects, damage, or injury (direct or indirect) caused by misuse, abuse, alteration or modification of any product (including sharpening).
